Piston Accumulator

Piston Accumulator

Piston accumulator is an economical choice for a variety of functions, including energy storage, hydraulic compensation or shock absorption in hydraulic or fluid systems. Designed to withstand high pressures and high frequencies, they are available in a wide range of specifications and can be designed and manufactured to specific sizes and pressures according to customer requirements.

Model Description
Product No.
HXQ
L
/
20
-
10
-
Y

Product Name:

HXQ: Piston Accumulator

Technical Specifications
Piston Accumulator
Model HXQ-※-0.22/※-※-※ HXQ-※-0.49/※-※-※ HXQ-※-1/※-※-※ HXQ-※-2/※-※-※ HXQ-※-0.49/※-※-※ HXQ-※-1/※-※-※ HXQ-※-1/※-※-※ HXQ-※-2/※-※-※ HXQ-※-2.5/※-※-※ HXQ-※-3.5/※-※-※ HXQ-※-5/※-※-※ HXQ-※-6/※-※-※ HXQ-※-7.5/※-※-※ HXQ-※-2/※-※-※ HXQ-※-4/※-※-※ HXQ-※-5/※-※-※ HXQ-※-10/※-※-※ HXQ-※-16/※-※-※ HXQ-※-20/※-※-※ HXQ-※-25/※-※-※ HXQ-※-32/※-※-※ HXQ-※-35/※-※-※ HXQ-※-40/※-※-※ HXQ-※-45/※-※-※ HXQ-※-50/※-※-※ HXQ-※-8/※-※-※ HXQ-※-10/※-※-※ HXQ-※-20/※-※-※ HXQ-※-32/※-※-※ HXQ-※-40/※-※-※ HXQ-※-50/※-※-※ HXQ-※-20/※-※-※ HXQ-※-32/※-※-※ HXQ-※-40/※-※-※ HXQ-※-50/※-※-※ HXQ-※-60/※-※-※ HXQ-※-80/※-※-※ HXQ-※-40/※-※-※ HXQ-※-50/※-※-※ HXQ-※-60/※-※-※ HXQ-※-80/※-※-※ HXQ-※-100/※-※-※ HXQ-※-120/※-※-※ HXQ-※-100/※-※-※ HXQ-※-120/※-※-※ HXQ-※-130/※-※-※ HXQ-※-150/※-※-※ HXQ-※-200/※-※-※ HXQ-※-215/※-※-※ HXQ-※-130/※-※-※ HXQ-※-150/※-※-※ HXQ-※-180/※-※-※ HXQ-※-200/※-※-※ HXQ-※-250/※-※-※ HXQ-※-300/※-※-※ HXQ-※-350/※-※-※
Pressure(MPa) 10～99 10～35 10～35 20 10～35 10～35 10～35 10～35
Volume(L) 0.22 0.49 1 2 0.49 1 1 2 2.5 3.5 5 6 7.5 2 4 5 10 16 20 25 32 35 40 45 50 8 10 20 32 40 50 20 32 40 50 60 80 40 50 60 80 100 120 100 120 130 150 200 215 130 150 180 200 250 300 350

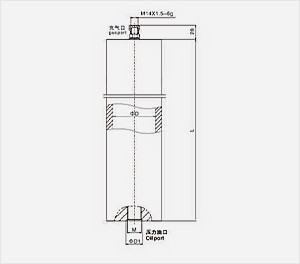

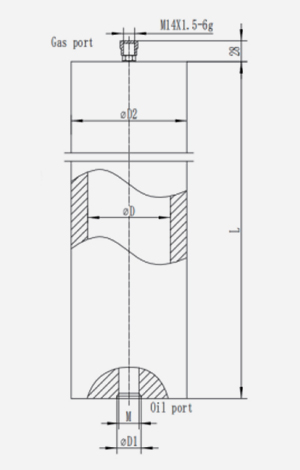

Dimension(mm) ΦD 63 65 80 100 125 180 195 220 250 350 400
M M22×1.5 M27×1.5 M42×2 M42×2 M60×2 M60×2 M60×2 M60×2 M72×2 M72×2
ΦD1 35 35 50 50 70 70 70 70 80 80
L±3 225 310 470 800 280 430 380 580 530 660 850 975 1170 390 555 635 655 890 1050 1250 1520 1645 1800 2030 2235 550 615 950 1350 1620 1955 850 1165 1380 1640 1905 2430 1205 1410 1615 2020 2430 2840 1560 1770 1870 2080 2600 2755 1620 1780 2020 2180 2570 2965 3370
Weight(kg) 9.5 10.9 13.8 19.8 - - 19.4 24.3 36.5 41.4 48.6 53.4 60.7 37 48 54 86.8 140.4 155.8 175 200.9 213.9 227.7 249.8 270 - - - - - - 179 223 253 290 327 400 299 334 368 435 503 572 836 912 948 1025 1113 1171 1136 1206 1310 1379 1548 1823 1896

Note:

1. Contact us if a special requirement is needed, custon made are welcome.
2. The number in the bracket is the size of the O-seal ring which meets GB/1235-76、1Mpa=10bar=10.2kg/cm²
