Accumulator Clamp

Accumulator Clamp

The clamp can well absorb the vibration of the hydraulic accumulator during operation and prevent it from falling off. It has the characteristic of compact structure, flexible connection and convenient operation.

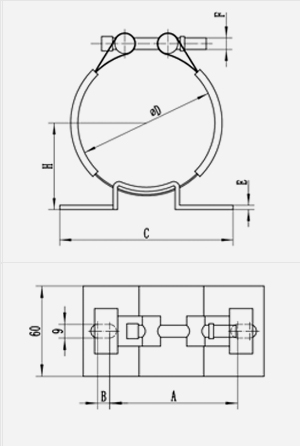

Technical Specifications

Model

 A (mm) B (mm) D (mm) H (mm) E (mm) L (mm) S (mm) K (mm) Remarks

NXJ-74

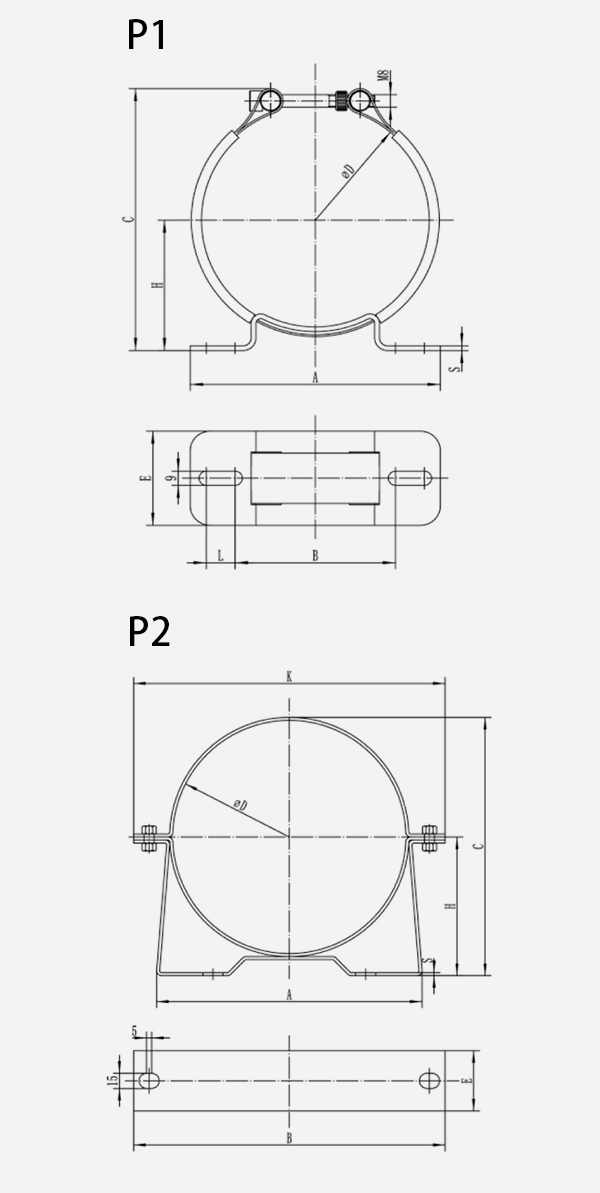

 120 85 71-77 49 60 8 3 / P1

NXJ-89

 120 85 89-92 64 60 8 3 /

NXJ-95

 120 85 92-98 60 60 8 3 /

NXJ-105

 156 100 105-114 68 60 18 3 /

NXJ-121

 156 100 118-126 75 60 18 3 /

NXJ-142

 156 100 133-142 83 60 18 3 /

NXJ-152

 156 100 152-159 87 60 18 3 /

NXJ-173

 236 152 170-176 97 60 32 4 /

NXJ-219

 236 152 216-224 122 60 32 4 /

NXJ-229

 265 152 226-232 138 60 32 3 310 P2

NXJ-299

 332 280 299 190 40 5 4 395

NXJ-351

 422 360 351 192 40 5 4 420
